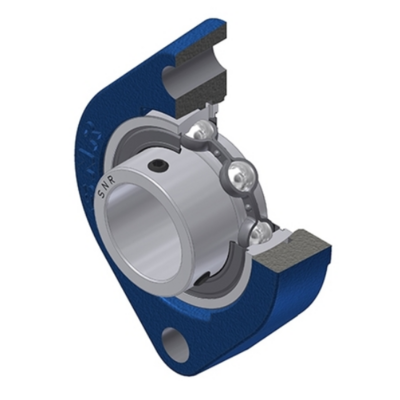

USFD204-SNR Bearing Unit

USFD204
SNR Brand
Bearing Unit

Grey cast housing, radial insert ball bearing with socket set screws, single lip seal
Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

This kit contains the following reference(s)
US204G2
FD204

PRODUCT DEFINITION
A - Housing height 17 mm
A2 - Total height from mounting surface 27,5 mm
B - Width of Inner Ring 25 mm
d - Shaft diameter 20 mm
e - Distance mounting surface to bearing center 9,5 mm
G - Grease fitting M6x1
H - Housing length, width or diameter 90,5 mm
J - Mounting holes distance 71,4 mm
L - Housing width / diameter 66,5 mm
N - Mounting hole dimension 9 mm
S - Distance front side/bearing centre 7 mm
