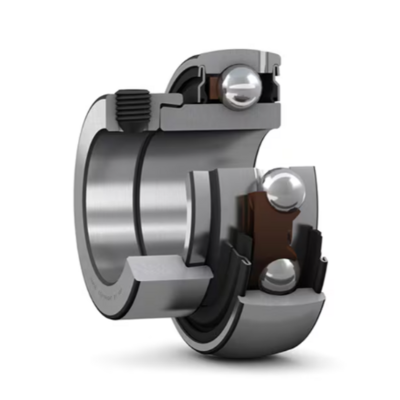

YET210-SKF Bearing Insert

YET 210
Insert bearing with an eccentric locking collar and narrow inner ring
Insert bearings are based on sealed deep groove ball bearings. This variant is intended for use in applications where the direction of rotation is constant. It has a narrow inner ring extended on one side, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.
Designed for rotation in one direction
Quick and easy to mount onto the shaft
Long service life
Reduce noise and vibration levels

Dimensions
Shaft diameter : 50 mm
Bore diameter : 50 mm
Outside diameter : 90 mm
Width, total : 43.7 mm
Width, inner ring : 30.2 mm
Width, outer ring : 22 mm
