GE10-UK-INA Spherical Plain Bearing
INA

GE10-UK-INA Spherical Plain Bearing

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£12.77 €14.77 $17.19 ex VAT

Descrizione

GE10-UK

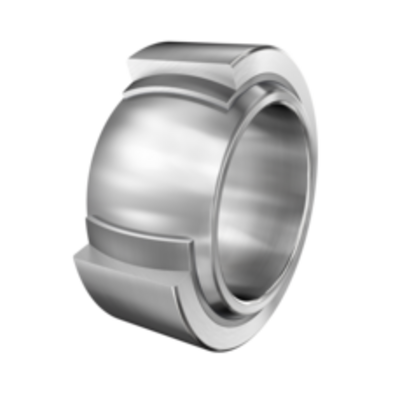

Spherical plain bearing

Radial spherical plain bearing, maintenance-free, sliding layer: PTFE composite, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series E, open design

Main Dimensions & Performance Data
D : 19 mm Outside diameter bearing
d : 10 mm Bore diameter bearing
B : 9 mm Width Inner ring
C : 6 mm Width Outer ring
Cr : 8,640 N Basic dynamic load rating, radial
C0r : 21,600 N Basic static load rating, radial

Fabric PTFE-composite PTFE-composite
Material Steel Steel

Dimensioni

Foro di dimensione: 10

Dimensione OD: 19

Larghezza dimensione: 9

Weight: 11g
