GE25-UK-INA Spherical Plain Bearing
INA

GE25-UK-INA Spherical Plain Bearing

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£23.53 €27.24 $31.64 ex VAT

Descrizione

GE25-UK

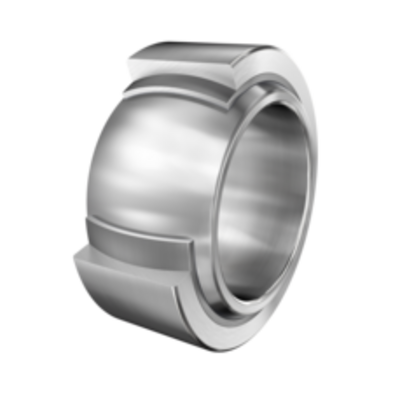

Spherical plain bearing

Radial spherical plain bearing, maintenance-free, sliding layer: PTFE composite, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series E, open design

Main Dimensions & Performance Data
D : 42 mm Outside diameter bearing
d : 25 mm Bore diameter bearing
B : 20 mm Width Inner ring
C : 16 mm Width Outer ring
Cr : 51,100 N Basic dynamic load rating, radial
C0r : 128,000 N Basic static load rating, radial

Fabric PTFE-composite PTFE-composite
Material Steel Steel

Dimensioni

Foro di dimensione: 25

Dimensione OD: 42

Larghezza dimensione: 20

Weight: 115g
