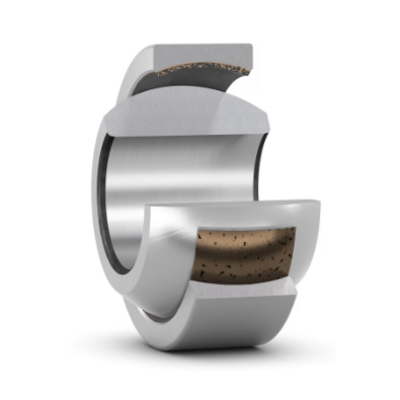

GEH12C-SKF Spherical Plain Bearing

GEH 12 C
Radial spherical plain bearing, maintenance-free, metric sizes
These spherical plain bearings have a steel/PTFE sintered bronze contact surface combination and are maintenance-free. The sliding surfaces have to be externally protected from contaminants. These bearings are also available with a wider inner ring and a larger outside diameter (suffix GEH), which enable higher load ratings and larger tilt angles.
Designed for radial and combined radial and axial loads
Long service life and maintenance-free
Suitable for heavy, constant direction loads
Low coefficient of friction
High operating temperatures
High sliding velocities and small operating clearances

Basic dynamic load rating : 18 kN
Basic static load rating : 45 kN
