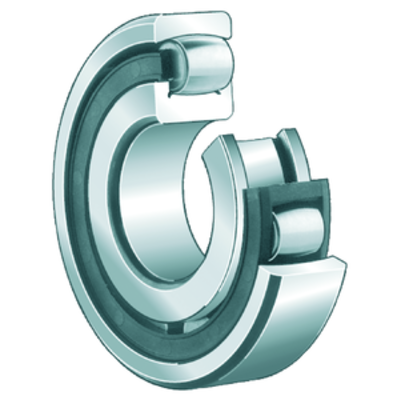

20311-TVP-C3-FAG Barrel Roller Bearing
NTN

20311-TVP-C3-FAG Barrel Roller Bearing

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£191.75 €222.18 $256.98 ex VAT

Descrizione

20311-TVP-C3
Barrel roller bearings 203, main dimensions to DIN 635-1

Main Dimensions & Performance Data
d : 55 mm Bore diameter
D : 120 mm Outside diameter
B : 29 mm Width
Cr : 120,000 N Basic dynamic load rating, radial
C0r : 138,000 N Basic static load rating, radial
Cur : 12,600 N Fatigue load limit, radial
nG : 5,400 1/min Limiting speed
≈m : 1.57 kg Weight

Your current product variant
Bore type Z Cylindrical
Cage TVP Plastic cage
Radial internal clearance C3 (Group 3) Internal clearance larger than CN

Dimensioni

Foro di dimensione: 55

Dimensione OD: 120

Larghezza dimensione: 29

Weight: 1570g
