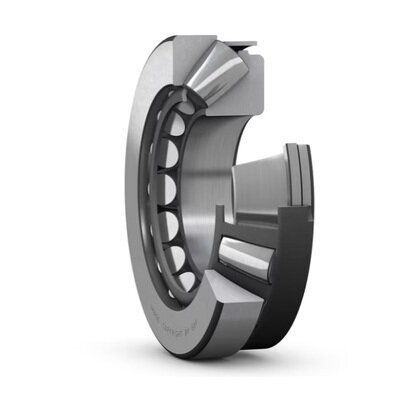

29416-E1-XL-FAG Spherical Roller Thrust Bearing
FAG

29416-E1-XL-FAG Spherical Roller Thrust Bearing

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£499.90 €578.78 $672.22 ex VAT

Descrizione

29416-E1-XL
Axial spherical roller bearing 294..-E1-XL, no flanging ring

Your current product variant
Heat treatment Standard Standard
Cage JP Sheet metal cage

Main Dimensions & Performance Data
d : 80 mm Bore diameter
D : 170 mm Outside diameter
T : 54 mm Height
Ca : 720,000 N Basic dynamic load rating, axial
C0a : 1,720,000 N Basic static load rating, axial
Cua : 199,000 N Fatigue load limit, axial
nG : 4,350 1/min Limiting speed
nϑr : 2,140 1/min Reference speed

Dimensioni

Foro di dimensione: 80

Dimensione OD: 170

Larghezza dimensione: 54

Weight: 5240g
