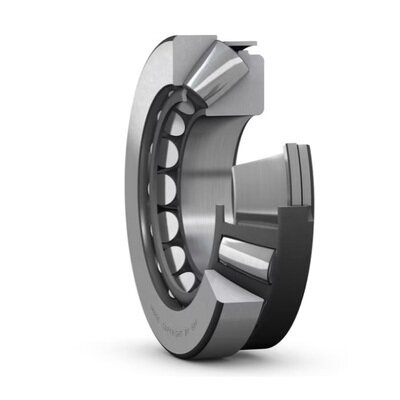

29416E-SKF Spherical Roller Thrust Bearing

29416 E
Spherical roller thrust bearing with stamped steel cage
Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.
High load carrying capacity
Can accommodate combined loads
Allow misalignment or create very stiff bearing arrangements
Long service life and low friction
Separable design

Performance
Basic dynamic load rating : 670 kN
Basic static load rating : 1 630 kN
Reference speed : 2 200 r/min
Limiting speed : 3 800 r/min
