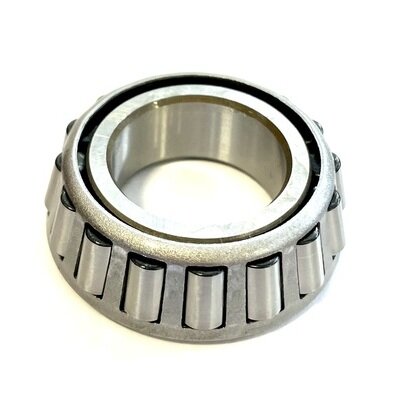

4T-05075-NTN Cone Only

4T-05075 - NTN
Mounted cone, pressed steel cage
The single row tapered roller bearing is available in metric dimensions (ISO 355 and JIS B 1512 standards) and in inches (ABMA standard, metric series including J). The single row in tapered roller bearing range, is the most widely used and is generally mounted in opposition.

PRODUCT DEFINITION
d - Internal diameter 19,05 mm
B - Bearing/Inner ring width 14,381 mm
d1 - External diameter inner ring 32,5 mm
undefined

PRODUCT PERFORMANCE
C - Dynamic load 26,6 kN
C0 - Static load 24,2 kN
A2 - Rating life coefficient 1
e - Coefficient 0.36
Y0 - Static axial load coefficient 0.92
Y2 - Upper axial load coefficient 1.68
