4T-JHM318448-NTN Cone Only
NTN

4T-JHM318448-NTN Cone Only

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£76.49 €88.50 $103.01 ex VAT

Descrizione

4T-JHM318448 - NTN

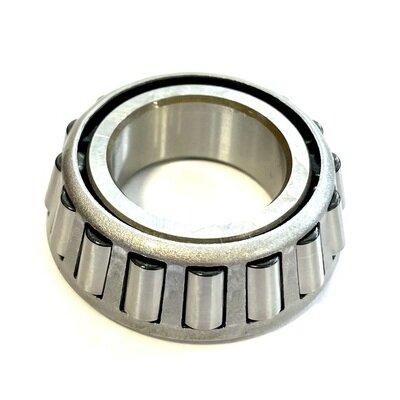

Mounted cone, pressed steel cage

The single row tapered roller bearing is available in metric dimensions (ISO 355 and JIS B 1512 standards) and in inches (ABMA standard, metric series including J). The single row in tapered roller bearing range, is the most widely used and is generally mounted in opposition.

PRODUCT DEFINITION
Brand NTN
d - Internal diameter 90 mm
B - Bearing/Inner ring width 44 mm
d1 - External diameter inner ring 120,5 mm

PRODUCT PERFORMANCE
C - Dynamic load 299 kN
C0 - Static load 385 kN
A2 - Rating life coefficient 1
e - Coefficient 0.34
Y0 - Static axial load coefficient 0.97
Y2 - Upper axial load coefficient 1.76

Dimensioni

Foro di dimensione: 90

Dimensione OD: 0

Larghezza dimensione: 44

Weight: 2356g
