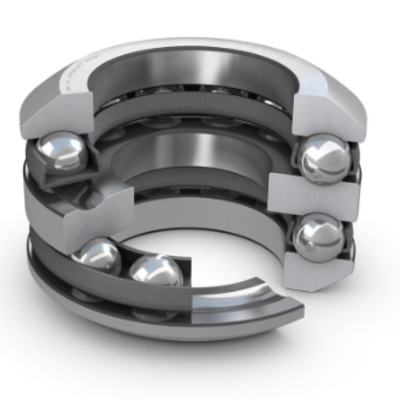

52407-SKF Double direction thrust ball bearing

Double direction thrust ball bearings can accommodate axial loads in both directions, but they must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections, and many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.

Separable design facilitates mounting/dismounting and maintenance inspections
Interchangeable components
Ground bore of the shaft washers enables interference fits

Dimensions
Bore diameter - 25 mm
Outside diameter - 80 mm
Height - 59 mm
Performance
Basic dynamic load rating - 76.1 kN
Basic static load rating - 137 kN
Reference speed - 2 000 r/min
Limiting speed - 2 800 r/min
