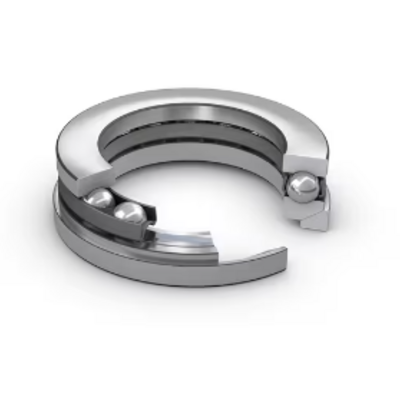

53318-SKF Single direction thrust ball bearing

53318
Single direction thrust ball bearing with sphered housing washer

Single direction thrust ball bearings, with sphered housing washer, can accommodate axial loads in one direction. They must not be subjected to any radial load. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit. The sphered housing washers can accommodate initial misalignment when configured correctly with a sphered seat washer or a machine component with a sphered surface.
Separable design facilitates mounting/dismounting and maintenance inspections
Interchangeable components
Ground bore of shaft washers enables interference fit
Sphered housing washers can accommodate initial misalignment

Dimensions
Bore diameter - 90 mm
Outside diameter - 155 mm
Height - 54.6 mm
Radius of aligning surface - 112 mm

Performance
Basic dynamic load rating - 182 kN
Basic static load rating - 440 kN
Reference speed - 1 400 r/min
Limiting speed - 2 000 r/min
