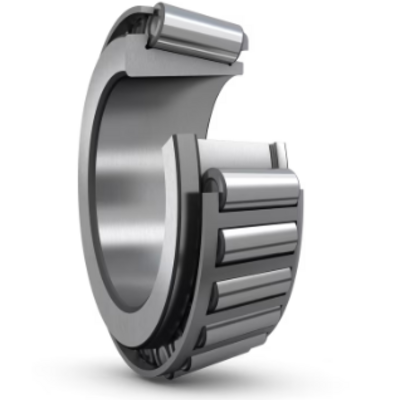

537/532X/Q-SKF Single row tapered roller bearing

537/532 X/Q
Single row tapered roller bearing, inch size

Single row tapered roller bearings, inch sizes, are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.
High radial and axial load carrying capacity
Accommodate axial loads in one direction
Low friction and long service life
Separable and interchangeable components

Dimensions
Bore diameter - 50.8 mm
Outside diameter - 107.95 mm
Width, total - 36.957 mm
Width, inner ring - 36.957 mm
Width, outer ring - 28.575 mm
Contact angle - 11.183 °
