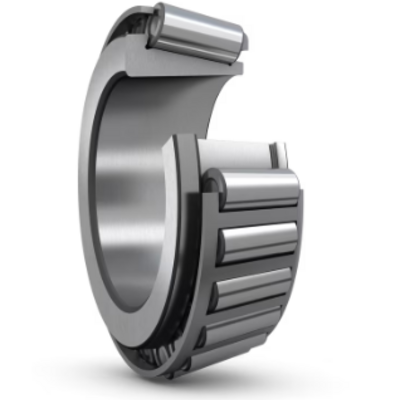

537/Q-SKF Single row tapered roller bearing, cone, inch size

Single row tapered roller bearing, cone, inch size

Tapered roller bearing cones (inner ring with rollers and cage), inch sizes, are intended to be combined with cups (outer ring) from the same series. Together they create a complete bearing that accommodates combined radial and axial loads and provides low friction during operation. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.
Can be combined with cups from the same series
High radial and axial load carrying capacity
Accommodate axial loads in one direction
Low friction and long service life

Dimensions
Bore diameter - 50.8 mm
Width, total - 36.957 mm
Width, inner ring - 36.957 mm

Performance
Basic dynamic load rating - 151 kN
Basic static load rating - 190 kN
