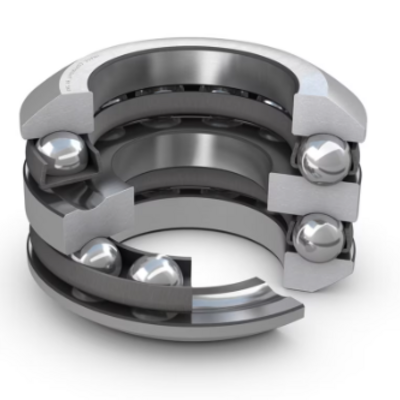

54310-SKF Double direction thrust ball bearing

Double direction thrust ball bearing with sphered housing washers

Double direction thrust ball bearings with a sphered housing washer can accommodate axial loads in both directions, but they must not be subjected to any radial load. Many of the components are interchangeable. These bearings can be used together with a sphered seat washer adjacent to the housing washer or adjacent to a machine component manufactured with a sphered surface. The shaft washers have a ground bore that enables an interference fit.
Separable design facilitates mounting/dismounting and maintenance inspections
Interchangeable components
Ground bore of the shaft washers enable interference fits
Accommodate initial misalignment
Used with a sphered seat washer

Dimensions
Bore diameter - 40 mm
Outside diameter - 95 mm
Height - 64.7 mm
Radius of aligning surface - 72 mm

Performance
Basic dynamic load rating81.9 kN
Basic static load rating170 kN
Reference speed1 700 r/min
Limiting speed2 400 r/min
