NUKRE90-X-INA
INA

NUKRE90-X-INA

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£210.97 €244.26 $283.69 ex VAT

Descrizione

NUKRE90-X-A

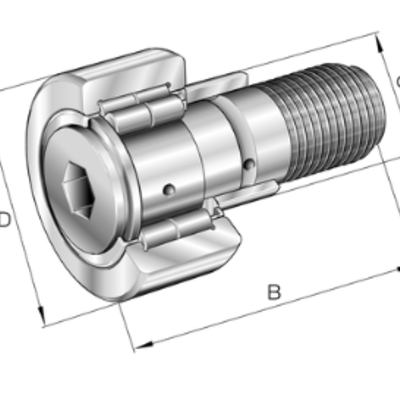

Yoke type track roller

Stud type track rollers NUKRE, with axial guidance, full complement cylindrical roller set, with eccentric collar, labyrinth seals on both sides

Main Dimensions & Performance Data
D = 90 mm Outside diameter
d1 = 30 mm Fit diameter of roller stud / stud
B = 100 mm Width
Cr w = 80,000 N Basic dynamic load rating, radial
C0r w = 123,000 N Basic static load rating, radial
Cur w = 17,000 N Fatigue load limit, radial
nD G = 1,800 1/min Speed on permanent grease lubrication
F0r per = 123,000 N Permissible static load, radial
Fr per = 76,000 N Permissible dynamic load outer ring, radial

Technical Data Sheet : https://www.bearings-online.co.uk/uploads/tinymce/NUKRE90-X-A.pdf

Dimensioni

Foro di dimensione: 35

Dimensione OD: 90

Larghezza dimensione: 100

Weight: 2020g
