RSTO8-X-TV-INA Track Roller 12x24x9.8
INA

RSTO8-X-TV-INA Track Roller 12x24x9.8

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£11.95 €13.83 $16.06 ex VAT

Descrizione

RSTO8-X-TV
Yoke type track rollers RSTO, without axial guidance, outer ring without ribs

Replaces
RSTO 8 X TN, RSTO8DZ.TN

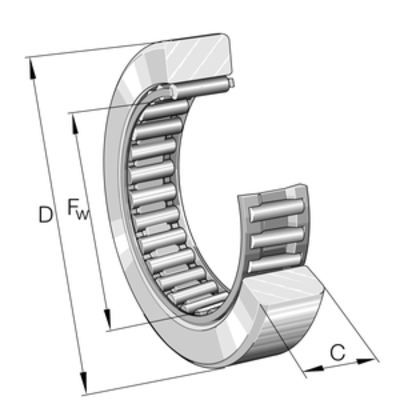

Main Dimensions & Performance Data
D = 24 mm Outside diameter
Fw = 12 mm Under roller diameter
C = 9.8 mm Width, outer ring
Cr w = 4,200 N Basic dynamic load rating, radial
C0r w = 5,600 N Basic static load rating, radial
Cur w = 800 N Fatigue load limit, radial
nD G = 8,000 1/min Speed on permanent grease lubrication

Dimensioni

Foro di dimensione: 12

Dimensione OD: 24

Larghezza dimensione: 9.8

Weight: 23g
