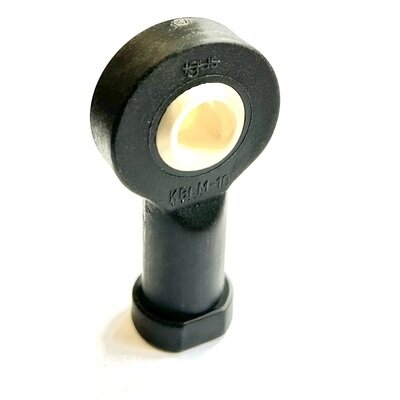

KBLM10 IGUS Left Hand Female Plastic Rod End 10mm Bore M10 Thread

KBLM10
IGUS Brand
Left Hand Female Plastic Rod End 10mm Bore M10 Thread

General properties
Weight : 14.8 g
thread (inner/outer) : inner thread
thread direction : Left-hand thread
Dimensional series : K, according to DIN ISO 12240
Housing material : igumid G
Material Spherical Ball : iglidur® W300
Max. static transverse load, short-term : 179.8 lbs (800 N)
Max. static transverse load, long-term : 89.9 lbs (400 N)
Max. tightening torque, thread : 15 Nm
Max. tightening torque through spherical ball : 20 Nm
Max. pivot angle (α) : 25 °
Max. static radial tensile stress, short-term : 696.9 lbs (3100 N)
Max. static radial tensile stress, long-term : 348.5 lbs (1550 N)
Manufacturing and installation tolerances :
Installation tolerance d1 : E10

Shaft diameter : 0.39 in (10 mm)
Ø d2 : 1.18 in (30 mm)
thread d3 : M10
Ø d4 : 0.59 in (15 mm)
Ø d5 : 0.75 in (19 mm)
pitch : 0.06 in (1.5 mm)
C1 : 0.41 in (10.5 mm)
B : 0.55 in (14 mm)
h1 : 1.69 in (43 mm)
l1 : 0.79 in (20 mm)
l2 : 2.28 in (58 mm)
W (key width) : SW17
Min. thread depth, Thread : 0.51 in (13 mm)

Thermal properties
Max. temperature long : 194 °F (90 °C)
Max. temperature short : 356 °F (180 °C)
Lower application temperature : -40 °C
