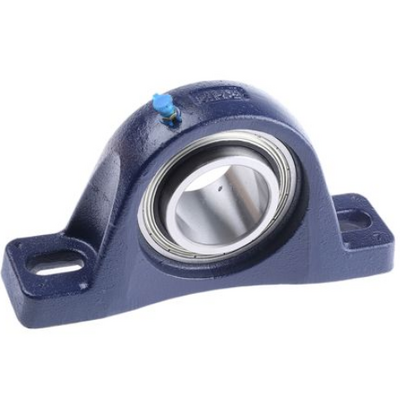

MP60 RHP - 2 Bolt Pillow Block Heavy Duty Self Lube Unit
RHP

MP60 RHP - 2 Bolt Pillow Block Heavy Duty Self Lube Unit

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£110.00 €127.36 $147.92 ex VAT

Descrizione

MP60
RHP Self Lube
Heavy Duty Cast Pillow Block with 60mm shaft bearing

Shaft diameter: 60mm
RHP designation: MP60
Basic bearing insert:1070
Casting group:8
Features: Set screw
Bearing Material: Steel
Lubrication: Standard
Sealing: Standard single lip seal

Dimensions (mm)
L:266.0
H:76.20
H1:27.0
H2:153.0
J Bolt centres max:224.5
J Bolt centres min:189.5
G:20
A:72.0
A1:47.0
B:74.60
S:30.24

ISO Load ratings (newtons)
Dynamic:61000
Static:45000

Rec max speed:2450 rev/min

Mass:9.3kg

Dimensioni

Foro di dimensione: 60

Weight: 9300g
