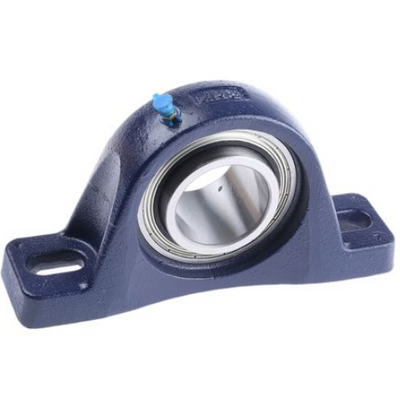

MP65 RHP - 2 Bolt Pillow Block Heavy Duty Self Lube Unit
RHP

MP65 RHP - 2 Bolt Pillow Block Heavy Duty Self Lube Unit

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£155.00 €179.46 $208.43 ex VAT

Descrizione

MP65
RHP Self Lube
Heavy Duty Cast Pillow Block with 65mm shaft bearing

Shaft diameter: 65mm
RHP designation: MP65
Basic bearing insert:1075
Casting group:9
Features: Set screw
Bearing Material: Steel
Lubrication: Standard
Sealing: Standard single lip seal

Dimensions (mm)
L:330.32
H:88.90
H1:28.6
H2:177.8
J Bolt centres max:255.6
J Bolt centres min:206.0
G:24
A:88.9
A1:66.7
B:77.80
S:30.24

ISO Load ratings (newtons)
Dynamic:66000
Static:49500

Rec max speed:2300 rev/min

Mass:13.4kg

Dimensioni

Foro di dimensione: 65

Weight: 13400g
