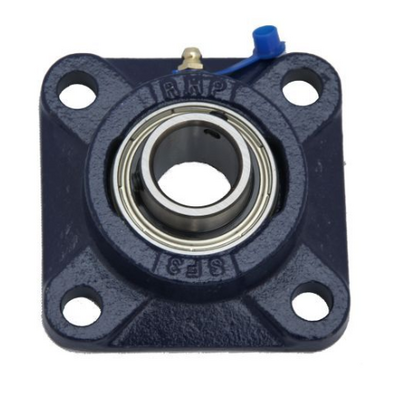

MSF75 RHP - 4 Bolt Square Flange Heavy Duty Self Lube Unit
RHP

MSF75 RHP - 4 Bolt Square Flange Heavy Duty Self Lube Unit

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£190.00 €219.98 $255.49 ex VAT

Descrizione

MSF75 RHP Self Lube
Heavy Duty 4 bolt square flange casting with 75mm shaft bearing

Shaft diameter: 75mm
RHP designation: MSF75
Basic bearing insert: 1080
Casting group: 10

Dimensions (mm)
L: 196.5
H: 173.5
J: 152.40
G: 20
A: 55.0
A1: 88.87
A4: 23.0
B: 82.60
S: 33.34

ISO Load ratings (newtons)
Dynamic: 71500
Static: 54500

Rec max speed: 2150 rev/min

Mass: 9.3 kg

Dimensioni

Foro di dimensione: 75

Weight: 9300g
