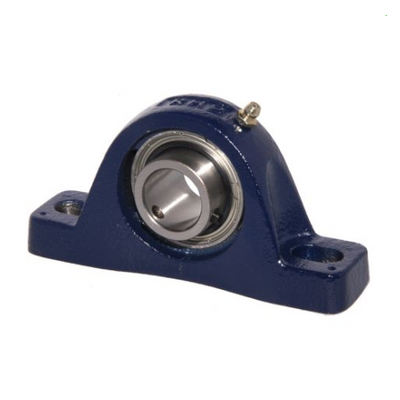

SL25 RHP 2 Bolt Cast Iron Pillow Block Bearing 25mm Bore
RHP

SL25 RHP 2 Bolt Cast Iron Pillow Block Bearing 25mm Bore

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£21.70 €25.12 $29.18 ex VAT

Descrizione

SL25 2 Bolt Cast Iron Pillow Block Bearing 25mm Bore

Shaft diameter: 25mm
RHP designation: SL25
Basic bearing insert: 1025
Casting group: 3
Features: Set screw
Bearing Material: Steel
Lubrication: Standard
Sealing: Standard single lip seal

Dimensions (mm)
L: 139.0
H: 33.32
H1: 12.8
H2: 67.8
J Bolt centres max: 110.2
J Bolt centres min: 98.2
G: 10
A: 36.0
A1: 24.5
B: 34.10
S: 14.33

ISO Load ratings (newtons)
Dynamic: 14000
Static: 7880

Rec max speed: 6250 rev/min

Mass: 0.7 kg

Dimensioni

Foro di dimensione: 25

Weight: 700g
