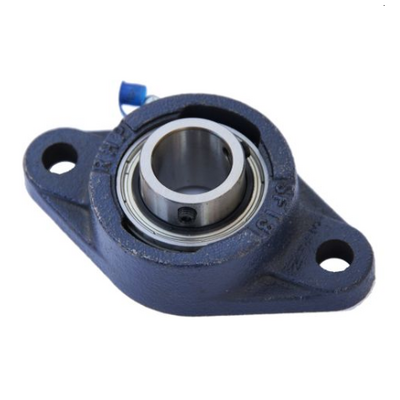

TSFT30 RHP - 2 Bolt Flange Self Lube Unit Triple Sealed
RHP

TSFT30 RHP - 2 Bolt Flange Self Lube Unit Triple Sealed

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£32.00 €37.05 $43.03 ex VAT

Descrizione

TSFT30
RHP Brand
2 bolt flange Self Lube Unit
complete with a 30mm triple sealed bearing insert with grubscrew locking

Shaft diameter: 30mm
RHP designation: SFT30
Basic bearing insert: T1030
Casting group: 4

Dimensions (mm)
L: 82.6
H: 141.3
J: 116.50
G: 10
A: 29.8
A1: 42.21
A4: 12.7
B: 38.10
S: 15.93

ISO Load ratings (newtons)
Dynamic: 19500
Static: 11300

Rec max speed: 5300 rev/min

Mass: 1.1 kg

Dimensioni

Foro di dimensione: 30

Weight: 1100g
