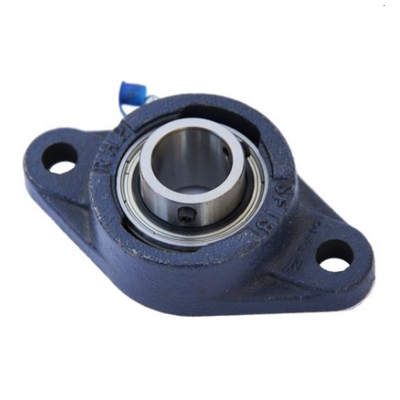

TSFT35 RHP - 2 Bolt Flange Self Lube Unit Triple Sealed
RHP

TSFT35 RHP - 2 Bolt Flange Self Lube Unit Triple Sealed

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£34.00 €39.37 $45.72 ex VAT

Descrizione

TSFT35
RHP Brand
2 bolt flange Self Lube Unit
complete with a 35mm triple sealed bearing insert with grubscrew locking

Shaft diameter: 35mm
RHP designation: SFT35
Basic bearing insert: T1035
Casting group: 5

Dimensions (mm)
L: 95.5
H: 155.5
J: 130.00
G: 12
A: 32.0
A1: 46.41
A4: 12.7
B: 42.90
S: 17.53

ISO Load ratings (newtons)
Dynamic: 25700
Static: 15300

Rec max speed: 4500 rev/min

Mass: 1.4 kg

Dimensioni

Foro di dimensione: 35

Weight: 1400g
