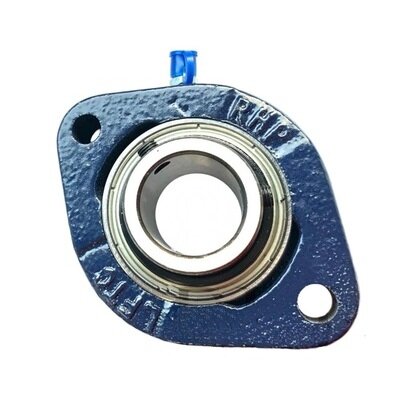

LFTC20A RHP 2 Bolt Flange Housed Bearing Unit - 20mm Shaft
RHP

LFTC20A RHP 2 Bolt Flange Housed Bearing Unit - 20mm Shaft

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£20.40 €23.62 $27.43 ex VAT

Descrizione

The LFTC20A RHP 20mm 2 Bolt Flanged Bearing is a precision-engineered, robust bearing unit designed for reliable performance in various industrial applications. This normal duty flanged bearing combines practical design with advanced features to provide secure and efficient shaft mounting.

Key Features
Two-bolt flanged unit with durable cast iron housing
Set screw lock insert with flush inner ring
Integrated grease nipple for easy re-lubrication
Removable insert design for convenient maintenance
Two grub screws for secure shaft attachment

Technical Specifications
Bore Size: 20mm
Height: 27.76mm
Hole Centre: 71.5mm
Length: 90.5mm
Width: 66.5mm
Component Composition
Housing: LFTC2CAS
Insert: 1220-20G

Dimensioni

Foro di dimensione: 20

Weight: 400g
