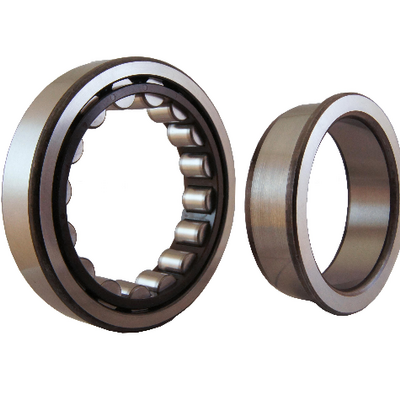

NJ203-E-XL-TVP2-C3-FAG Cylindrical Roller Bearing
FAG

NJ203-E-XL-TVP2-C3-FAG Cylindrical Roller Bearing

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£19.75 €22.87 $26.56 ex VAT

Descrizione

NJ203-E-XL-TVP2-C3
Cylindrical roller bearing NJ..-E-XL-TVP2, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ

Main Dimensions & Performance Data
d : 17 mm Bore diameter
D : 40 mm Outside diameter
B : 12 mm Width
Cr : 20,800 N Basic dynamic load rating, radial
C0r : 14,600 N Basic static load rating, radial
Cur : 2,220 N Fatigue load limit, radial
nG : 26,500 1/min Limiting speed
nϑr : 15,300 1/min Reference speed

Dimensioni

Foro di dimensione: 17

Dimensione OD: 40

Larghezza dimensione: 12

Weight: 70g
