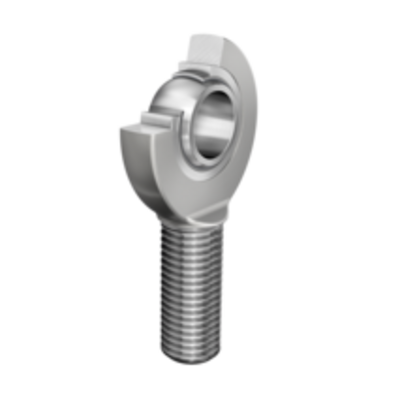

GAKR20-PW-INA Rod End Bearing
INA

GAKR20-PW-INA Rod End Bearing

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£47.16 €54.43 $62.41 ex VAT

Description

GAKR20-PW
Rod end GAKR..-PW, external threads, maintenance-free

Main Dimensions & Performance Data
d :20 mm Bore diameter bearing
D : 40 mm Outside diameter bearing
B : 25 mm Width inner ring
Cr : 56,600 N Basic dynamic load rating
C0r : 45,600 N Basic static load rating
≈m : 0.386 kg Weight
dk : 34.925 mm Ball diameter
d1 : 24.3 mm Outer flange diameter inner ring
d2 : 50 mm Outer diameter eye
d3 : M20x1,5 Thread size
h : 78 mm Length of thread
C1 : 18 mm Width of the rod end

Dimensions

Dimension Bore: 20

Dimension OD: 50

Dimension Width: 25

Weight: 386g
