NKI6/12-TV-INA Needle Roller Bearing
INA

NKI6/12-TV-INA Needle Roller Bearing

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£12.42 €14.38 $16.73 ex VAT

Description

NKI6/12-TV-XL

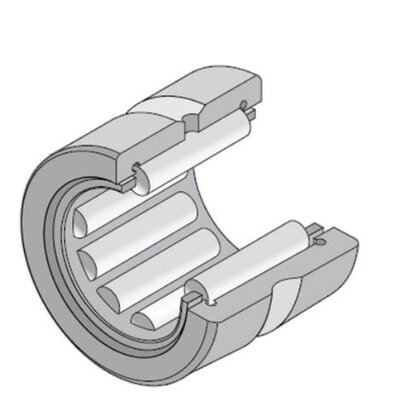

Needle roller bearings NKI, light series

Main Dimensions & Performance Data
d : 6 mm Bore diameter
D : 16 mm Outside diameter
B : 12 mm Width
Cr : 5,100 N Basic dynamic load rating, radial
C0r : 5,000 N Basic static load rating, radial
Cur : 860 N Fatigue load limit, radial
nG : 31,000 1/min Limiting speed
nϑr : 28,500 1/min Reference speed

Dimensions

Dimension Bore: 6

Dimension OD: 16

Dimension Width: 12

Weight: 13g
