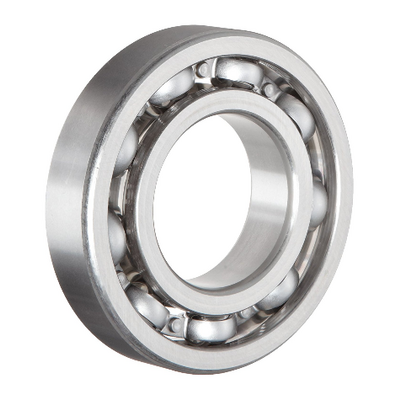

6224-FAG Ball Bearing 120x215x40

6224
Deep groove ball bearing 62, single row, steel sheet metal cage

Sealing Without Not sealed
Cage JN Steel sheet metal
Tolerance class PN Normal (PN)
Dimensional / heat stabilization S0 Rings dimensional stabilized up to 150°
Lubricant Without Bearing not greased
Radial internal clearance CN (Group N) Normal internal clearance

Main Dimensions & Performance Data
d : 120 mm Bore diameter
D : 215 mm Outside diameter
B : 40 mm Width
Cr : 154,000 N Basic dynamic load rating, radial
C0r : 123,000 N Basic static load rating, radial
Cur : 6,400 N Fatigue load limit, radial
nG : 4,200 1/min Limiting speed
nϑr : 4,250 1/min Reference speed
