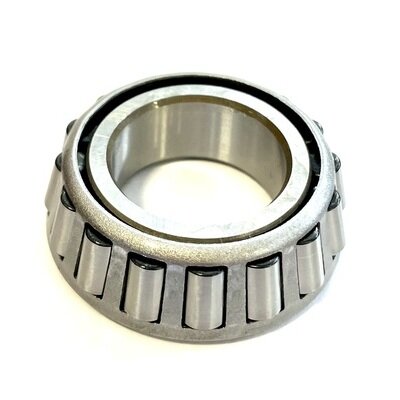

4T-53177-NTN Cone Only

4T-53177 - NTN
Mounted cone, pressed steel cage

The single row tapered roller bearing is available in metric dimensions (ISO 355 and JIS B 1512 standards) and in inches (ABMA standard, metric series including J). The single row in tapered roller bearing range, is the most widely used and is generally mounted in opposition.

Product information
PRODUCT DEFINITION
d - Internal diameter 44,45 mm
B - Bearing/Inner ring width 28,3 mm
d1 - External diameter inner ring 70,8 mm
C - Dynamic load 91,5 kN
C0 - Static load 92 kN
A2 - Rating life coefficient 1
e - Coefficient 0.74
Y0 - Static axial load coefficient 0.45
Y2 - Upper axial load coefficient 0.81
