3205-BD-XL-2Z-TVH-FAG Angular Contact Bearing

3205-BD-XL-2Z-TVH

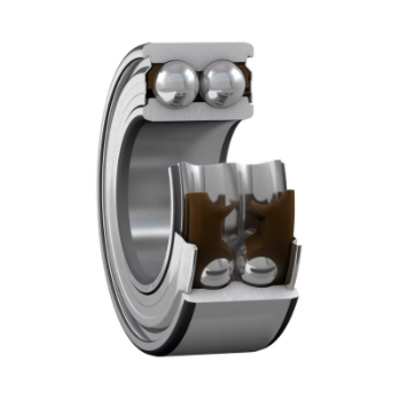

Angular contact ball bearing 32..-BD-XL-2Z-TVH, double row, X-life, shields, plastic cage

Main Dimensions & Performance Data
d : 25 mm Bore diameter
D : 52 mm Outside diameter
B : 20.6 mm Width
Cr : 22,000 N Basic dynamic load rating, radial
C0r : 15,200 N Basic static load rating, radial
Cur : 1,050 N Fatigue load limit, radial
nG : 10,700 1/min Limiting speed
nϑr : 12,500 1/min Reference speed
≈m : 0.171 kg Weight

Design variant B Bearing without filling slot
Changed internal design D D
Sealing 2Z Non-contact shield on both sides
Cage TVH Solid cage made of glass-fiber reinforced polyamide PA66
Tolerance class P6 Class6 (P6), better than PN
Dimensional / heat stabilization SN Rings dimensional stabilized up to 120°
Lubricant GA13 Ball bearing and insert bearing grease
Axial internal clearance CN Group N (CN)
