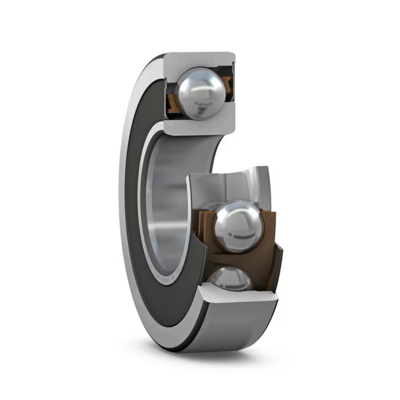

7202-B-XL-2RS-TVP-FAG Angular Contact Bearing
FAG

7202-B-XL-2RS-TVP-FAG Angular Contact Bearing

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£33.54 €38.81 $45.17 ex VAT

Description

7202-B-XL-2RS-TVP
Angular contact ball bearing 72..-B-XL-2RS-TVP, single row, X-life, seals, plastic cage

Main Dimensions & Performance Data
d : 15 mm Bore diameter
D : 35 mm Outside diameter
B : 11 mm Width
Cr : 8,900 N Basic dynamic load rating, radial
C0r : 4,450 N Basic static load rating, radial
Cur : 305 N Fatigue load limit, radial
nG : 12,800 1/min Limiting speed
≈m : 0.046 kg Weight

Your current product variant
Design variant B B
Sealing 2RS Contact seal on both sides
Cage TVP Solid cage made of glass-fiber reinforced polyamid PA66
Tolerance class P6 Class6 (P6), better than PN
Dimensional / heat stabilization S0 Rings dimensional stabilized up to 150°
Lubricant GA14 Ball bearing grease, low noise

Dimensions

Dimension Bore: 15

Dimension OD: 35

Dimension Width: 11

Weight: 42g
